NOTES:

Part #	Number on image	Usage Notes
503-000-028	1	For rotor fitted with TACA coated flails use p/n 503-000-035 Rotors with TACA coated flails are fitted as standard to all US machines.
306-216-705	11	Flail Bolt and nut combination supplied under part number 306-216-705, use part number 307-216-053 for nut only
411-480-643	12	Use part number 411-000-029 for TACA coated flail option

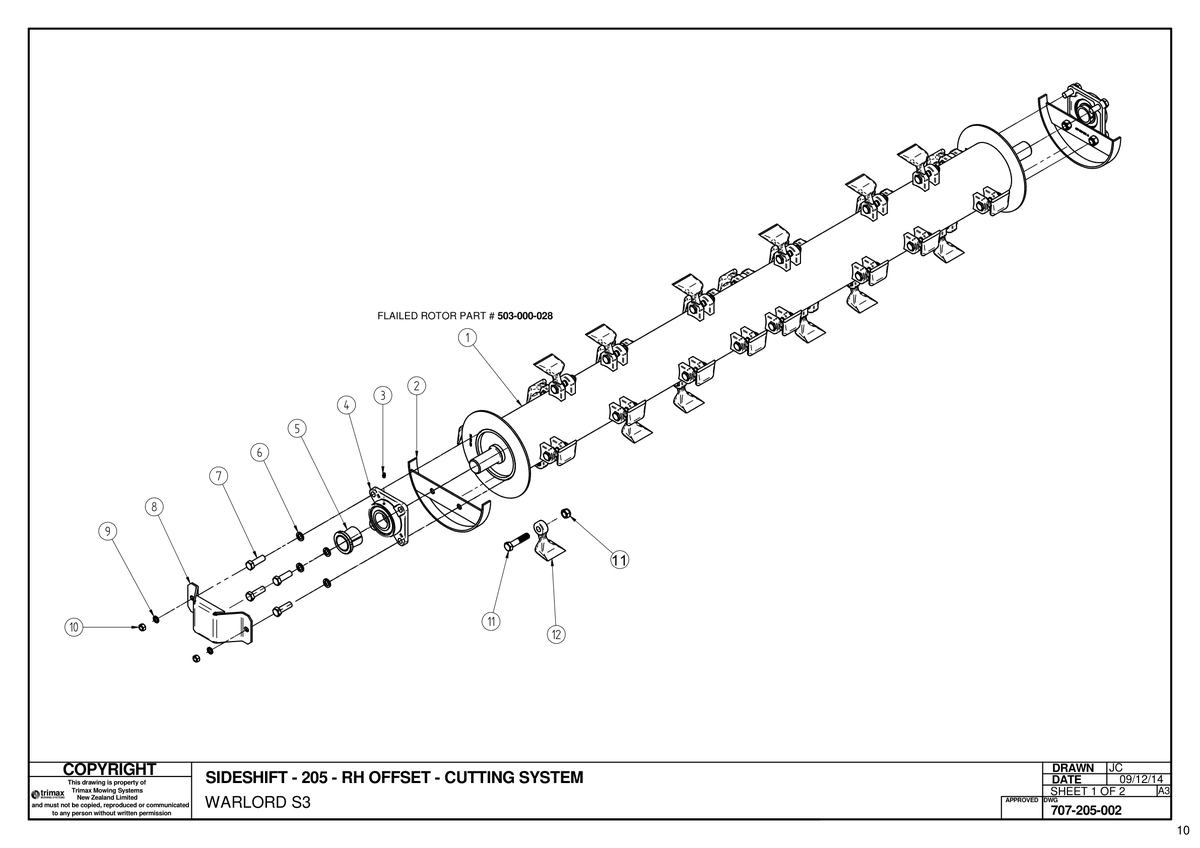

753 - Warlord S3 205 - Cutting System

Warlord S3 205

Grouped product items
No.	Product Name	Price
1	Rotor Assembly 205 RH i See notes section for usage notes on this part 503-000-028 More Info >	£4,324.87
2	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	£36.43
3	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
4	Bearing Assembly 401-000-002 More Info >	£70.31
5	Sleeve - Taper 401-021-230 More Info >	£20.86
6	Washer - Spring 308-160-043 More Info >	£0.43
7	Bolt 301-216-503 More Info >	£2.80
8	Bearing Guard 410-460-302 More Info >	£75.23
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
11	Bolt - Hex Head M16 x 75 with Hex Nyloc Nut M16 - Trimax Specification - i See notes section for usage notes on this part 306-216-705 More Info >	£8.19
12	Flail - Forged Flail - Warlord and Force - Trimax Specification - i See notes section for usage notes on this part 411-480-643 More Info >	£14.35
