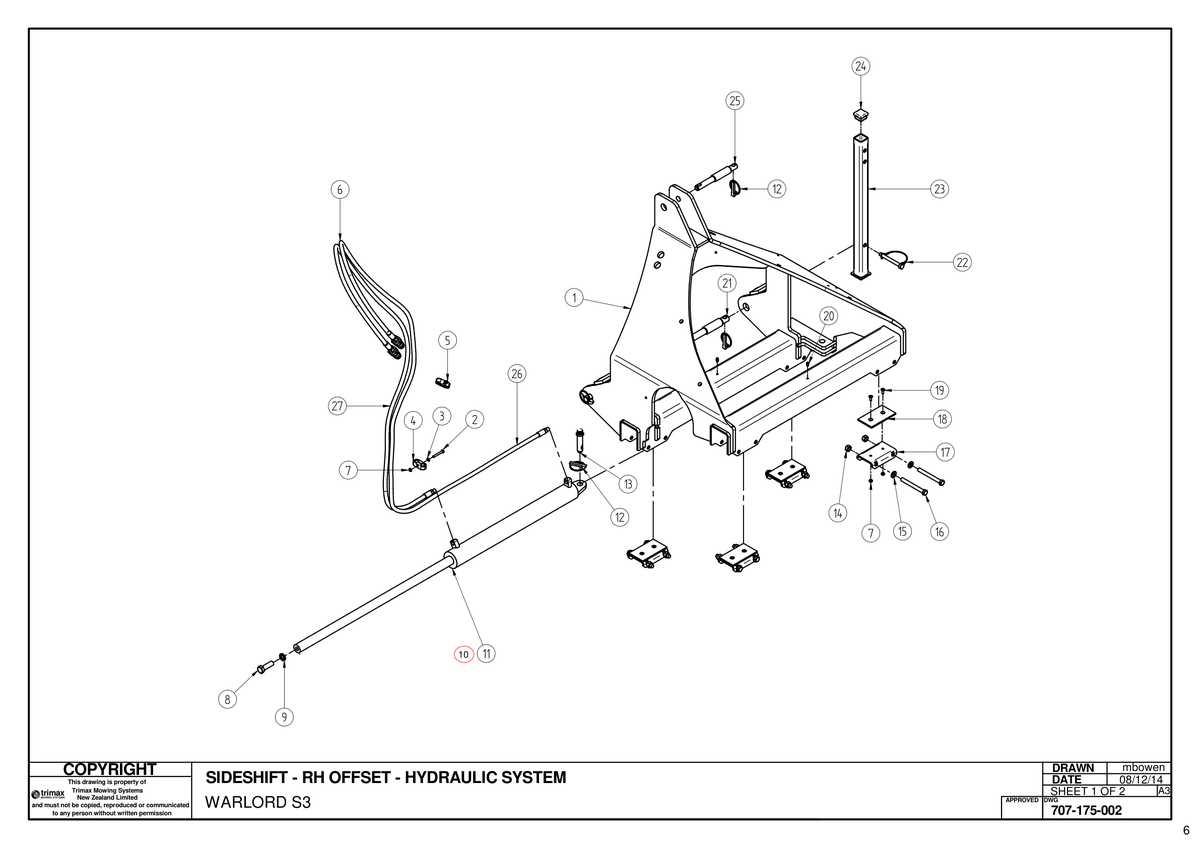

753 - Warlord S3 205 - Hydraulic System

Warlord S3 205

Grouped product items
No.	Product Name	Price
2	Bolt 301-206-453 More Info >	£0.74
3	Washer - Flat 308-060-013 More Info >	£0.27
4	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	£5.28
5	Bolt 301-206-403 More Info >	£0.58
7	Nut - Nyloc 307-206-053 More Info >	£0.33
8	Bolt 301-216-503 More Info >	£2.80
9	Washer - Spring 308-160-043 More Info >	£0.43
10	Seal Kit - Side Shift 408-000-062 More Info >	£79.18
12	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
13	Pin - Top Link 419-000-023 More Info >	£7.77
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
16	Bolt 301-212-113 More Info >	Price on Request
17	Slide Plate - Side Shift 413-000-086 More Info >	£26.08
18	Slide Pad - Side Shift 413-000-087 More Info >	£24.92
19	Countersunk Screw 302-206-165 More Info >	£0.58
20	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
21	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
22	Pin 406-346-410 More Info >	£6.29
23	Stand - Front 413-000-073 More Info >	£62.72
24	Cap - Tube Insert Square 209-480-661 More Info >	£4.66
25	Pin - Linkage - Upper Dual Cat. 419-300-800 More Info >	£18.96
26	Hydraulic Hose 409-000-067 More Info >	£60.60
27	Hydraulic Hose 409-000-068 More Info >	£62.72
